용도별 Model 구분
● 실험실 냉동고: LGPv 6520 | LGUex 1500(방폭형)
냉동고
PRODUCTS
실험실용
냉동고

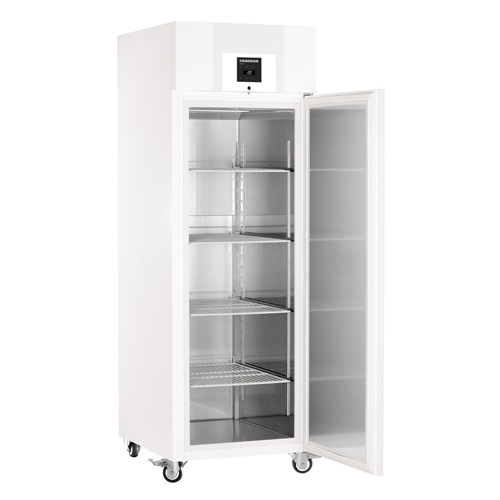

LGPv 6520
(Heavy-duty Freezers)

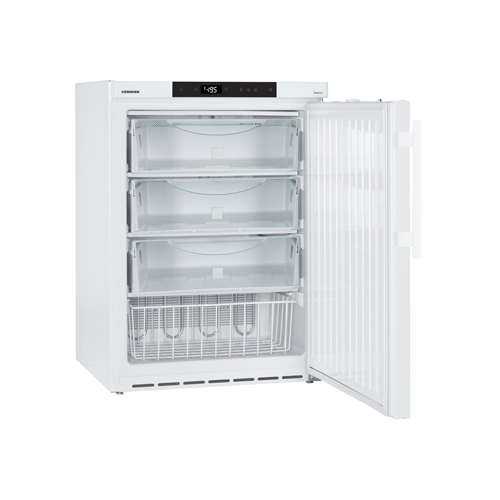

LGUex 1500
(Spark-free interior)
SPEC 비교
| Specificatons | LGPv 6520 | LGUex 1500 |
|---|---|---|
| Gross capacity | 602 litters | - |
| Total gross/net volume | - | 139 / 129 liters |
| Exterior dimensions in mm(W/D/H) | 700 / 830 / 2160 | 601 / 618 / 820 |
| Interior dimensions in mm(W/D/H) | 533 / 650 / 1550 | 454 / 450 / 663 |
| Energy consumption per year | 1367 kWh | 294 kWh |
| Ambient temperature range | +10℃ to +40℃ | +10℃ to +35℃ |
| Refrigerant | R 290 | R 600a |
| Sound power level | 60 dB(A) | 45 dB(A) |
| Voltage | 220-240V~ | 220-240V~ |
| Cooling system | forced-air | static |
| Defrost | automatic | manual |
| Temperature range | -35℃ to -9℃ | -26℃ to -9℃ |
| Gradient / max. fluctuation | 2.9℃/3.6℃ | 6.6℃/3.3℃ |
| External cabinet finish | steel / white | steel / white |
| Door material | steel | steel |
| Internal liner material | 304-grade stainless steel | commercial grade moulded polystyrol |
| Type of control | electronic controller | electronic controller |
| Temperature display | external digital | external digital |
| Power failure alarm | immediately upon power failure for 72h. | when mains power return |
| Fault: warning signal | visual and audible | visual and audible |
| Interface/ Volt-free alarm contact | RS 485 / yes | RS 485 / yes |
| Adjustable shelves | 4 | - |
| Usable shelf area in mm(W/D) | 533 / 650 | 454 / 450 |
| Shelf material | wire shelves plastic-coated | evaporator plates |
| Shelf loading | 60 kg | 24 kg |
| Drawers | - | 3 |
| Number of baskets | - | 1 |
| Castors | castors with brake at the front, fixed castors at the rear | - |
| Handle | full-length integrated handle | slimline handle with integrated opening mechanism |
| Lock | fitted | fitted |
| Self-closing door | yes | yes |
| Door hinges | right, reversible on site | right, reversible on site |
| Gross /net weight | 162 / 136 kg | 43 / 42 kg |
