용도별 Model 구분

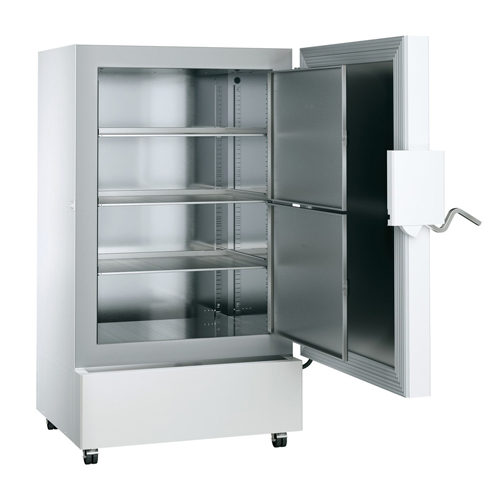

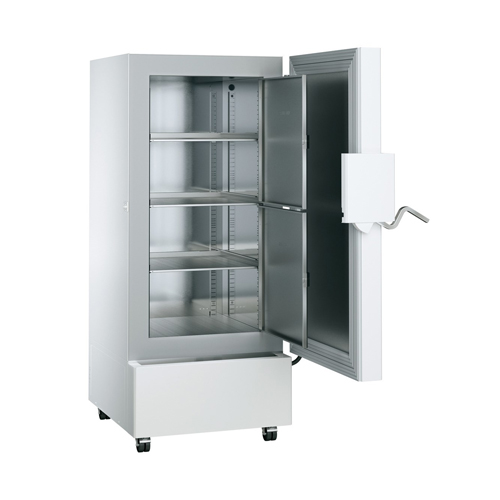

● 실험실 초저온 냉동고: SUFsg 7001 | SUFsg 5001
초저온 냉동고
PRODUCTS
실험실 초저온
냉동고
SPEC 비교
| Specificatons | SUFsg 5001 | SUFsg 7001 |
|---|---|---|
| Total gross/net volume | 491 / 477 liters | 728 / 700 liters |
| Exterior dimensions in mm(W/D/H) | 920 / 1082 / 1966 | 1204 / 1082 / 1966 |
| Interior dimensions in mm(W/D/H) | 606 / 605 / 1330 | 890 / 605 / 1330 |
| Energy consumption per year | 2884 kWh | 2957 kWh |
| Ambient temperature range | +16℃ to +32℃ | +16℃ to +32℃ |
| Heat output | 1188 kJ/h | 1224 kJ/h |
| Heat output system/Refrigeration system | air cooling / 2-stage cascade system | air cooling / 2-stage cascade system |
| Refrigeration circults | 2 | 2 |
| Refrigerant | R290 / R170 | R290 / R170 |
| Sound power level | 47 dB(A) | 47 dB(A) |
| Connection rating | 7.0A / 1600 W | 7.0A / 1600 W |
| Frequency / voltage | 50 Hz/ 230V~ | 50 Hz/ 230V~ |
| Temperature range | -86℃ to -40℃ | -86℃ to -40℃ |
| External cabinet finish | steel / white | steel / white |
| Door material | steel | steel |
| Internal liner material | stainless steel | stainless steel |
| Type of control | electronic controller | electronic controller |
| Temperature display | external digital | external digital |
| Interface/ Volt-free alarm contact | LAN(Ethernet) / yes | LAN(Ethernet) / yes |
| Data logger | integrated, USB interface | integrated, USB interface |
| Power failure alarm | immediately upon power failure for 72h. | immediately upon power failure for 72h. |
| Cooling system | static | static |
| Pull-down time +22℃ to -80℃ | 360 min | 450 min |
| Warm-up time -80℃ to -60℃/to 0℃ | 230 min/ 2160 min | 250 min/ 2220 min |
| Number / maximum number of storage shelves | 4 / 13 | 4 / 13 |
| Adjustable shelves | 3 | 3 |
| Shelf material | stainless steel | stainless steel |
| Shelf loading | 50 kg | 50 kg |
| Number of racks per shelf | 4 | 6 |
| Max. number of cryoboxes,50mm/75mm | 352/224 | 528/336 |
| Castors | castors with brake at the front, fixed castors at the rear | castors with brake at the front, fixed castors at the rear |
| Replaceable door seal | yes | yes |
| Access Ports | 2 x Φ28 mm | 2 x Φ28 mm |
| Lock | fitted | fitted |
| Door hinges | right hand hinged, not reversible | right hand hinged, not reversible |
| Gross /net weight | 308 / 254 kg | 361 / 313 kg |
